The full-case inspection system Camia is designed to check carton sealing quality. It adopts advanced visual recognition technology to verify whether carton sealing is up to standard. Carton sealing quality plays a vital role in both goods storage and logistics transportation. This full-case inspection solution ensures compliant sealing quality and prevents defective cartons from entering subsequent processes, thus avoiding production losses.
|
Scope of Application:
|
Installation position:
|

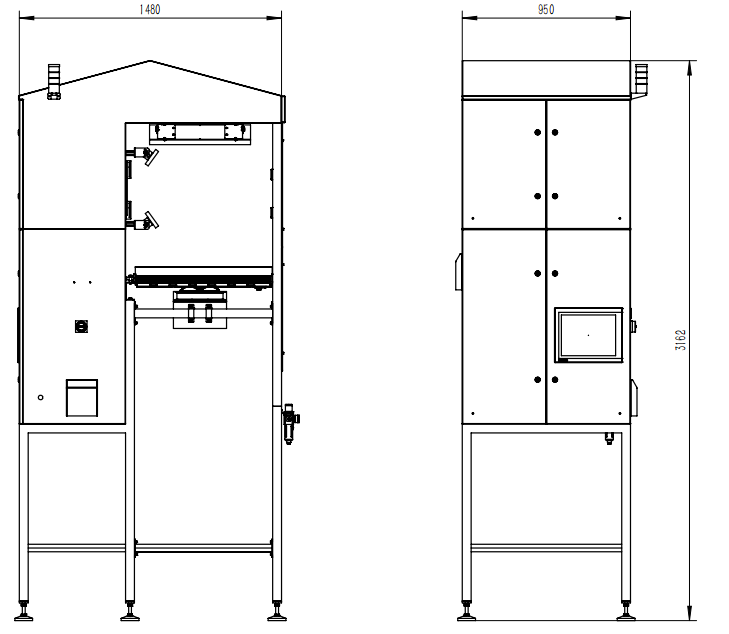

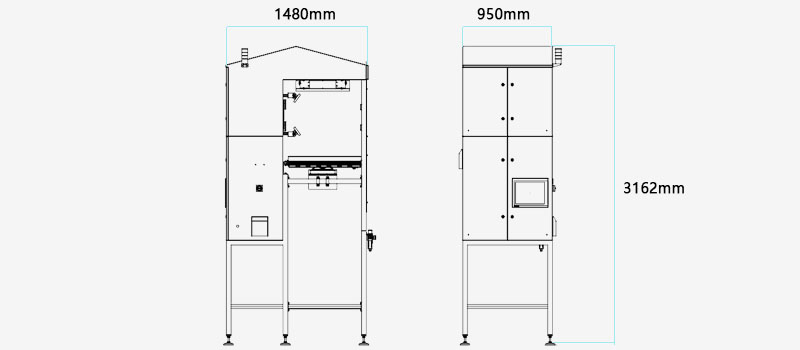

This carton inspection device features electric height adjustment and one-click model change, delivering simplicity and high efficiency. Its overall dimensions are 1480*950*3162 mm (Length × Width × Height).
The device is equipped with four cameras in total. Two color cameras mounted on the top detect warped carton surfaces and folded flaps. The other two grayscale cameras inspect two carton sections via mirror reflection, covering printed codes, defective sealing, misalignment and exposed gaps, among other defects.
Widely applicable to industries including beverages, alcohol, condiments and logistics, the system enables full-cartoon inspection on production lines.
Wrong case
Misalignment with exposed gaps
Bad sealing
Faulty coding
Barcode reading
Internally temperature-controlled design
Inspection module with IP65 protection level
Motor-driven automatic adjustment for different box sizes
Multi-camera integration (side/top) for full-coverage inspection
