The Exacta in-labeller label inspection system is equipped with cutting-edge visual recognition technology, enabling full 360° all-round label inspection. It accurately identifies various label defects, including label alignment deviation, abnormal splice labels and incomplete adhesion. It is compatible with self-adhesive labels, wrap-around labels, paper labels and other label types.
|
Scope of application:
|
Installation position:
|
The Exacta label inspection systemis suitable for strict inspection of multiple labels or multiple parts of a single label on carbonated drink, water and beer production lines. Composed of three cameras installed inside the labeling machine, it inspects body labels, back labels and neck labels of containers. It supports a maximum label inspection speed of 72 000BPH.
Featuring a compact modular design, the inspection modules can be installed flexibly and integrated into labeling machines of various sizes. It can also be combined with label code inspection as required, enabling control of both inspection items via a single control center.

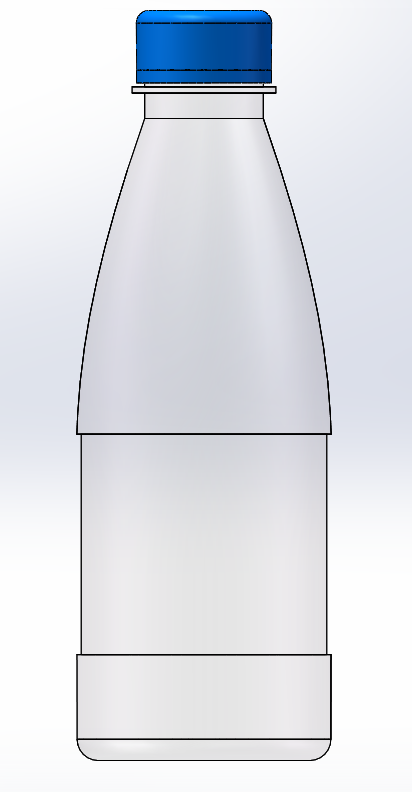

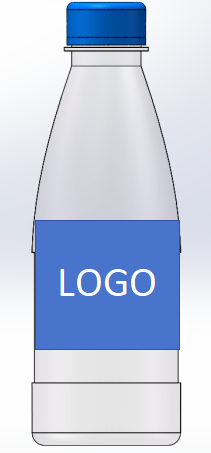

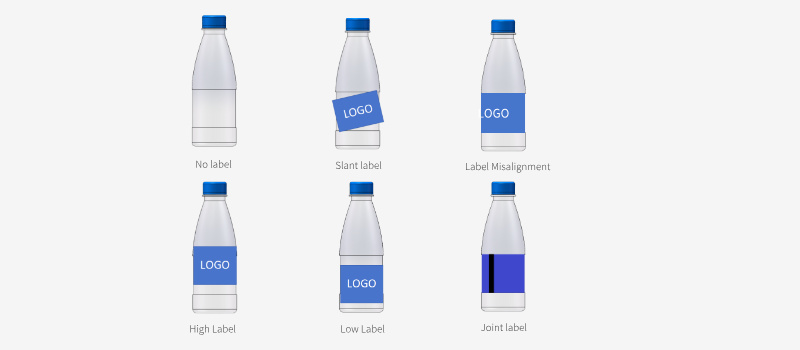

No label

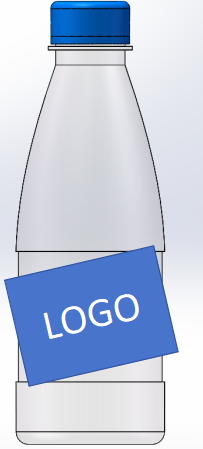

Slant label

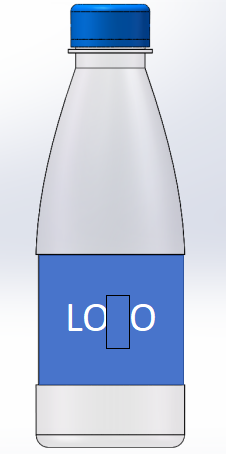

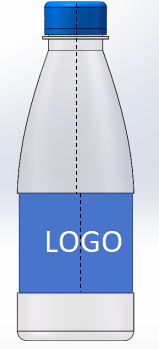

Label Misalignment

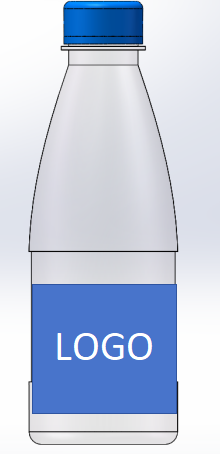

High/Low Label

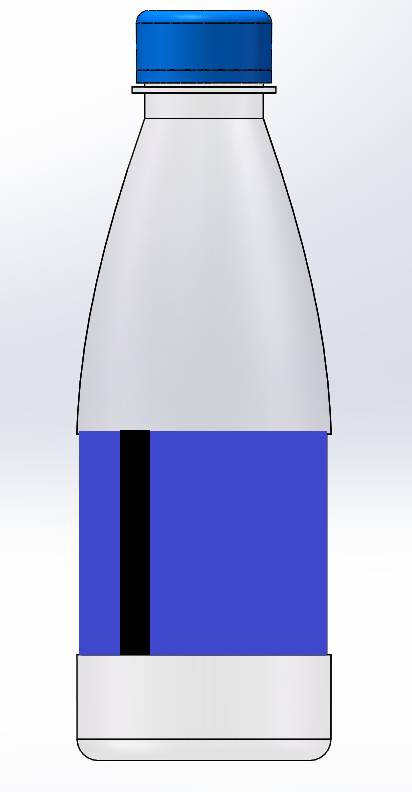

Joint label
It mainly inspects the application condition of front labels on the production line.

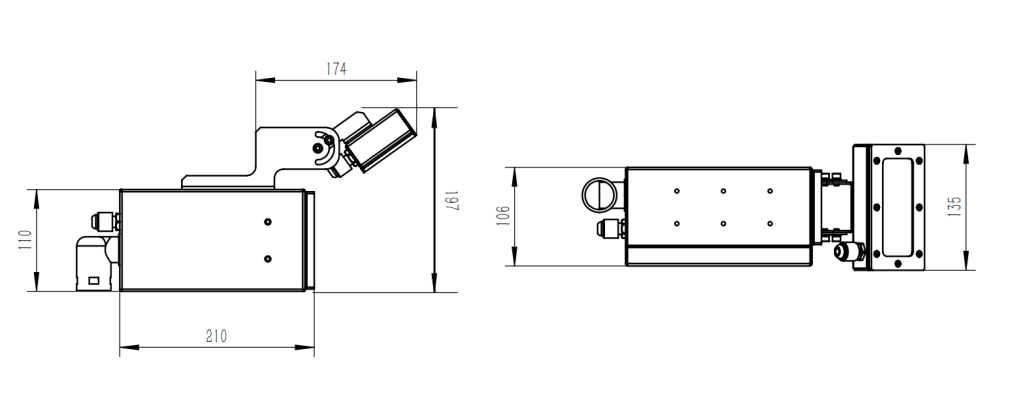

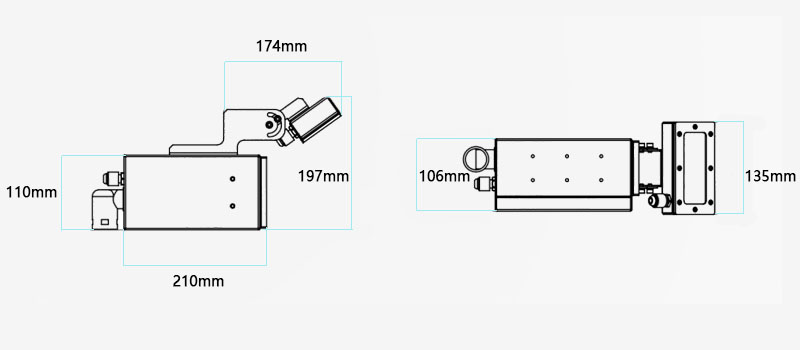

The label inspection unit consists of one camera and one light source, featuring a compact and flexible overall design with adjustable light source angle.
It is mainly used to inspect the sticking quality of neck labels and back labels on the production line.

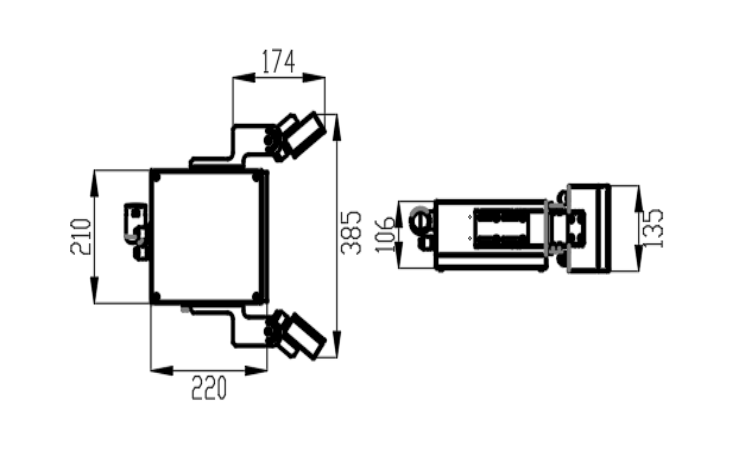

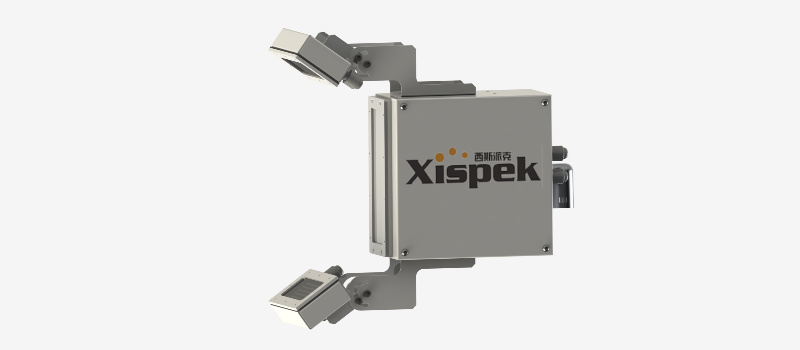

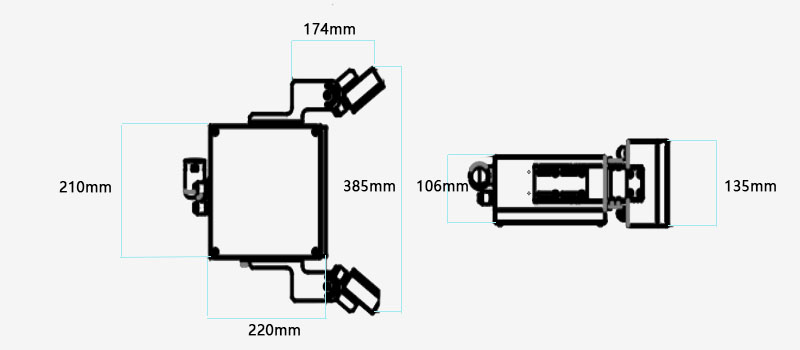

This label inspection unit is equipped with two cameras and two light sources. It boasts a compact and flexible overall structure, and the angles of light sources are adjustable.
Adopts XispVision® universal inspection software platform High inspection efficiency and accuracy Compact design for easy integration，flexible adjustment of the installation position according to the position inside the labeling machine Inspection module with IP65 protection level
